Solenoid Coils

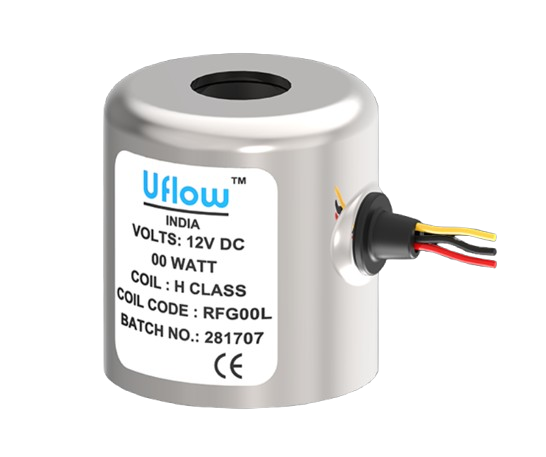

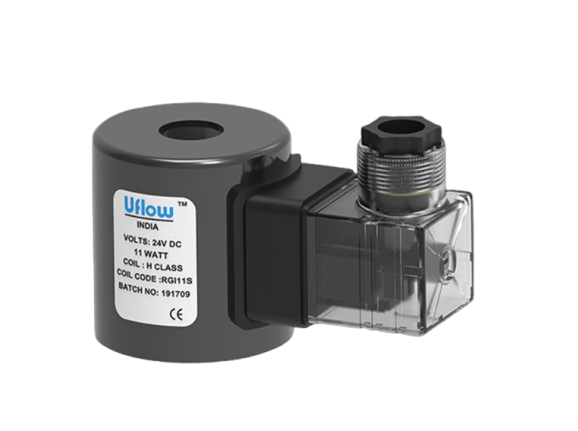

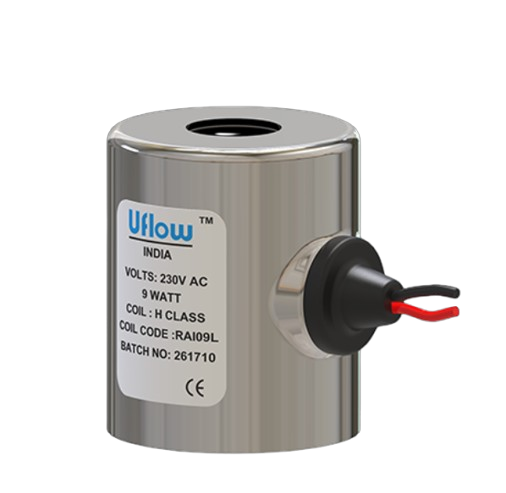

Port :- IP65 Epoxy moulded with led din connector, Metallic round shape with lead wire, IP67 Flame proof junction box, IP68 weather proof metallic round enclosure, IP67 Weather proof junction box,
IP67 Explosion proof junction box with bottom cable entry, IP67 Explosion proof junction box with horizontal cable entry

Coil Bore Diameter :- 5mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 28mm, 30mm

Class :- H-Class, Weather Proof IP68, Flame Proof IP67

Voltage/Watt :- 24AC/9W , 110AC/8W-30W , 230AC/8W-17W-30W , 12DC/10W-6W , 24DC/11W-6W

Duty :- Non Latching – Continues Duty – 100%, Latching – Required pulse in millisecond.

Main Features :- Surge Suppressor for High Wattage Coil. 90% Power saver series also available, Latching Coil.

Latching Coil Benefits :- Remote or Battery operated application
A situation where a valve needs to be open/actuated for an extended period of time.

Continuous operation of solenoid coil generates heat, and certain portion of it get dissipated into the media flowing through the valve, hence to avoid such heat generation and dissipation, Latching coil is recommended.

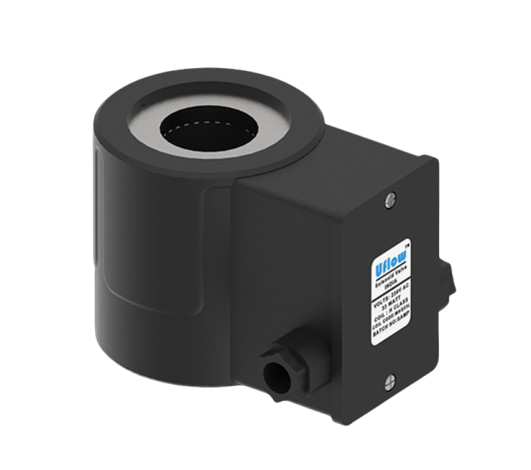

End connections in Flame Proof Junction Box , Weather Proof Junction Box are available in
– ½” NPT
– M20 X 1.5



BENEFITS:
 Reduce Battery Drain  Reduce Wiring Cost  Reduce Temperature Rise  Low Wattage
 Energy Savings  Improve Valve Performance at High Pressure



Metallic Round Enclosure Weather proof coils complies as per IS/IEC-60529-2001
(Approved by ERDA) (IP-68).

Weather proof junction Box coils complies as per IS/IEC-60529-2001
(Approved by ERDA) (IP-67).

Flame Proof Junction Box conforming as per Is/IEC-60079-1:2007 (Approved by ELCA).

Coils are suitable for IIC Atmosphere Condition (Zone 1&2 Gas Group).

For Flame Proof Condition Working Environment Coils are licensed under PESO.

Flame Proof Series are followed under BIS.

TRCU certified product available on request

CE certified

Add to Quote
SKU: N/A Category:

Description

Additional information

Solenoid Coils

10mm Epoxy Square Moulded Coil With LED DIN Connector, 10mm IP68 Weatherproof Metallic Round Coil With Lead Wire, 10mm Metallic Round Coil With Lead Wire, 12mm Epoxy Square Moulded Coil With LED DIN Connector, 12mm IP68 Weatherproof Metallic Round Coil Latching Type Coil, 12mm IP68 Weatherproof Metallic Round Coil With Lead Wire, 14mm ATEX Certified Explosion Proof Bottom Cable Entry (Aluminum), 14mm ATEX Certified Explosion Proof Bottom Cable Entry (CF8/CF8M), 14mm ATEX Certified Explosion Proof Horizontal Cable Entry (Aluminum), 14mm ATEX Certified Explosion Proof Horizontal Cable Entry (CF8/CF8M), 14mm Epoxy Square Moulded Coil With LED DIN Connector, 14mm IP67 Flame Proof Coil With Junction Box (CMRI Certified), 14mm IP67 Weather Proof Coil With Aluminium Junction Box (ERDA Certified), 14mm IP67 Weather Proof Coil With CF8 Junction Box (ERDA Certified), 14mm IP68 Weatherproof Metallic Round Coil With Lead Wire, 14mm Latching Type Coil (Metallic Round), 14mm Metallic Round Coil With Lead Wire, 14mm Metallic Round Coil With Lead Wire Silicon Dual Core, 14mm Metallic Round Coil With LED DIN Connector, 14mm Power Saver Coil (Metallic Round), 14mm TRCU Certified Explosion Proof Bottom Cable Entry (Aluminum), 14mm TRCU Certified Explosion Proof Bottom Cable Entry (CF8/CF8M), 14mm TRCU Certified Explosion Proof Horizontal Cable Entry (Aluminum), 14mm TRCU Certified Explosion Proof Horizontal Cable Entry (CF8/CF8M), 18mm ATEX Certified Explosion Proof Bottom Cable Entry (Aluminum), 18mm ATEX Certified Explosion Proof Bottom Cable Entry (CF8/CF8M), 18mm ATEX Certified Explosion Proof Horizontal Cable Entry (Aluminum), 18mm ATEX Certified Explosion Proof Horizontal Cable Entry (CF8/CF8M), 18mm Epoxy Square Moulded Coil With LED DIN Connector, 18mm IP67 Flame Proof Coil With Junction Box (CMRI Certified), 18mm IP68 Weatherproof Metallic Round Coil With Lead Wire, 18mm Latching Type Coil (Metallic Round), 18mm Metallic Round Coil With Lead Wire, 18mm Metallic Round Coil With LED DIN Connector, 18mm Power Saver Coil (Metallic Round), 18mm TRCU Certified Explosion Proof Bottom Cable Entry (Aluminum), 18mm TRCU Certified Explosion Proof Bottom Cable Entry (CF8/CF8M), 18mm TRCU Certified Explosion Proof Horizontal Cable Entry (Aluminum), 18mm TRCU Certified Explosion Proof Horizontal Cable Entry (CF8/CF8M), 30mm Epoxy Square Moulded Coil With LED DIN Connector, 5mm Metallic Round Coil With Lead Wire, 8mm Epoxy Square Moulded Coil With LED DIN Connector, 8mm IP68 Weatherproof Metallic Round Coil With Lead Wire, C1109AFT LED DIN Connector 11CD PG9 230 V AC Suitable for 10mm ID Coil, C1109BFT LED DIN Connector 11CD PG9 24 V AC Suitable for 10mm ID Coil, C1109EFT LED DIN Connector 11CD PG9 110 V AC Suitable for 10mm ID Coil, C1109FFT LED DIN Connector 11CD PG9 12 V DC Suitable for 10mm ID Coil, C1109GFT LED DIN Connector 11CD PG9 24 V DC Suitable for 10mm ID Coil, C1809AFT LED DIN Connector 18CD PG9 230 V AC Suitable for 14mm ID Coil, C1809BFT LED DIN Connector 18CD PG9 24 V AC Suitable for 14mm ID Coil, C1809EFT LED DIN Connector 18CD PG9 110 V AC Suitable for 14mm ID Coil, C1809FFT LED DIN Connector 18CD PG9 12 V DC Suitable for 14mm ID Coil, C1809GFT LED DIN Connector 18CD PG9 24 V DC Suitable for 14mm ID Coil
