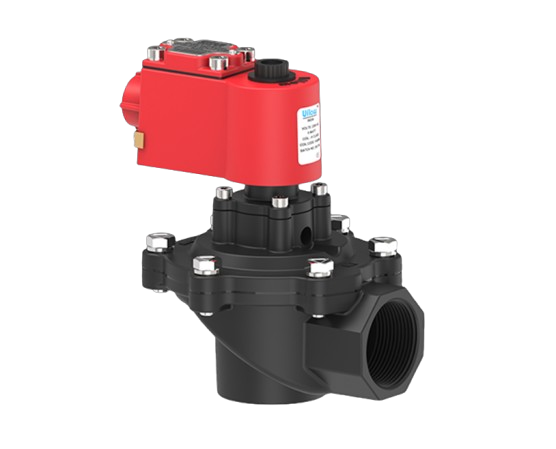

Pulse Jet Valve

Specification
Port : 1/2″, 1″, 1-1/2 “, 2″ & 2-1/2” qvailable in BSP ⁄ NPT)
End Connection : Screwed
Body Material : Aluminum Die Cast

Diaphragm: NBR

Media Temp: -30 to 90 Deg C

Circumstance Temp : -10°C to 70°C
Media : Air
Main Features : Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Air Pollution Control System, Bag Filter Machine
Operating Voltage : 24AC, 110AC, 230AC, 12DC, 24DC
Power Consumption : 9W = 24AC, 110AC, 230AC & 10W = 12DC & 11W = 24DC

Coil Features :High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Coil Housing : IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure.
Optional Feature : 90% Power saver series also available.
Other Specification Data: Available on Request – Brass silencer to reduce extra noise

NOTE: Use of filter in the inlet port is recommended
