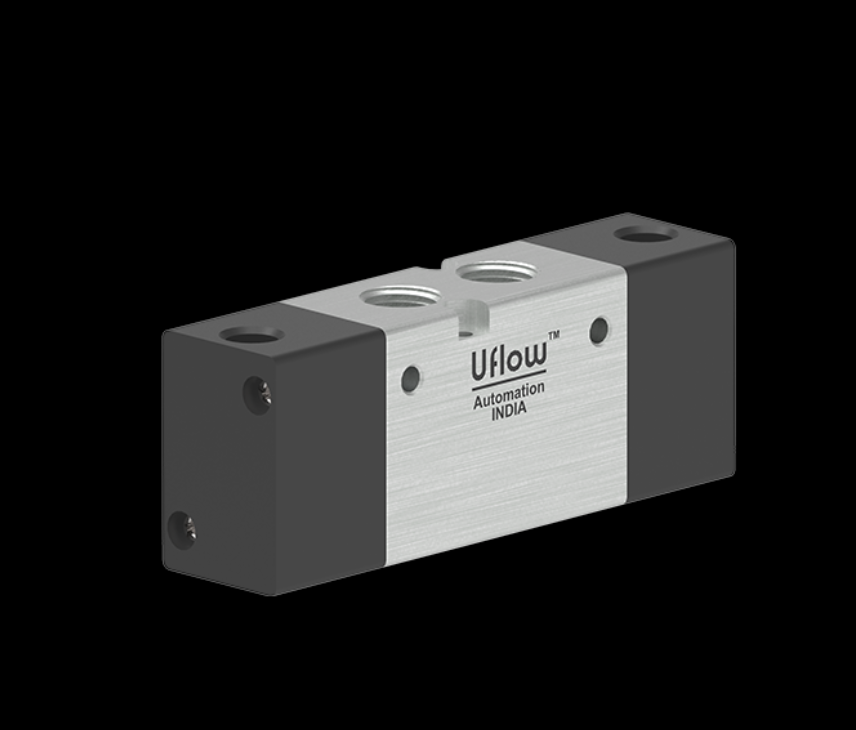

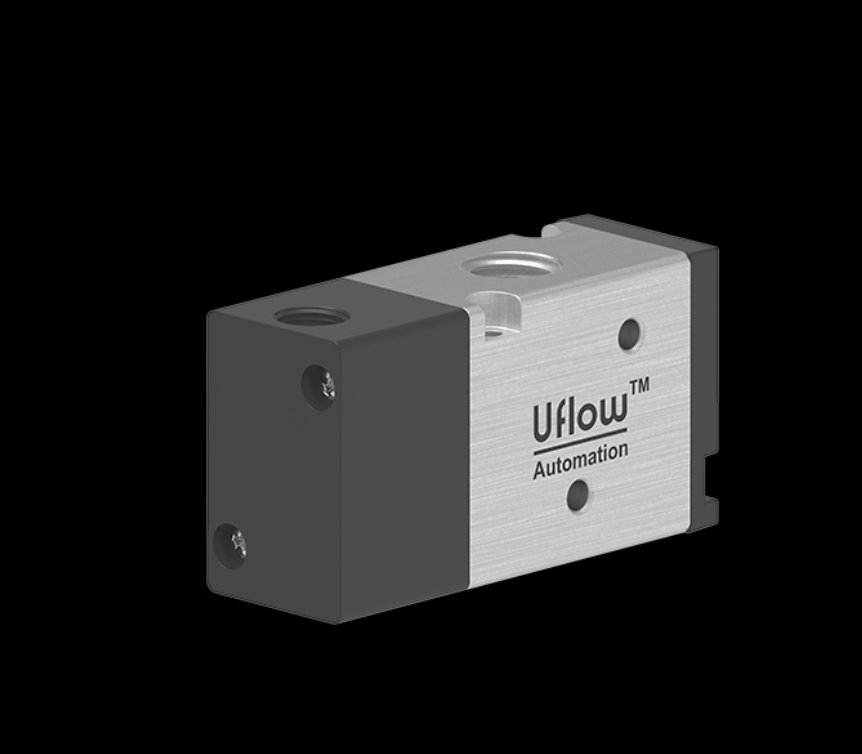

Pneumatic Series 3

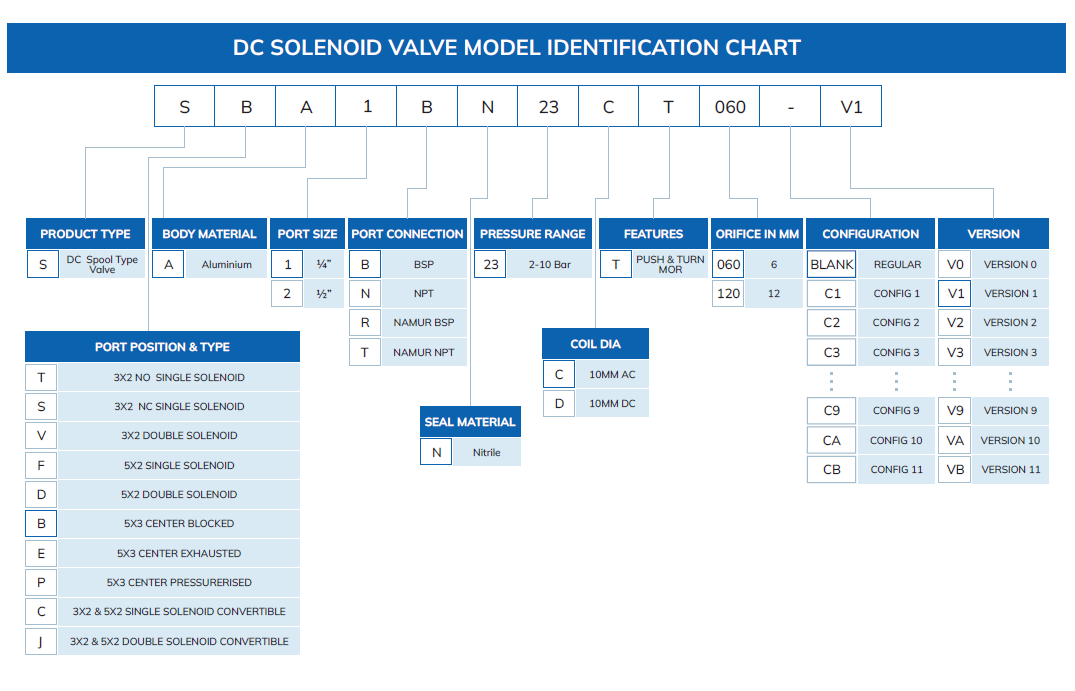

Model Information

Type:- Solenoid Operated, Lever Operated, Pilot Air Operated, Push Pull (3X2-NC / NO, 5X2, 5X3)
Design:- Spool With Cartridge Type
Media:- Compressed Air (Filtered & Lubricated)
Working Pressure Range:- 2 – 10 Bar for Solenoid Valve, 0 – 10 Bar for Manual Valve & Air Pilot Valve
Ambient / Media Temperature:- 5°C – 60°C
Materials of Construction:- Aluminium, Nitrile, Brass, Polymer

Coil Information

Coil Width:- 26 mm
Coil Bore:- 10 mm
Voltage (V) ± 10%:- AC (50Hz, 60Hz) – 24V, 110V, 230V & DC 12V, 24V, 36V, 48V, 110V
Power Consumption:- AC-6W, DC-6W
Duty Cycle:- Continuous
Type of Coil Protection:- IP65
Class of Insulation:- Class H
Coil Housing:- Epoxy Square Coil

Features

• Cartridge Type Design For Long Life
• Compact Design
• Standard NAMUR Mounting
• 1 Million Cycle Tested
• Low Power Consumption
• Manual Override
• Lubrication Not Essential
• Wide Range Of Coil Voltage
