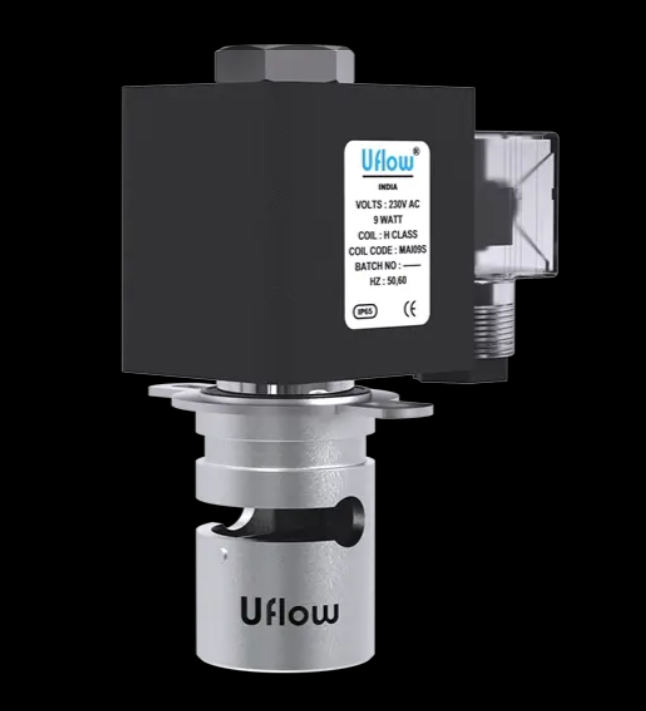

Pinch Solenoid Valve

Body :- Aluminum

Internal Parts :- Stainless Steel

Sealing :- Polyamide

Pressure Range :- Up to 0.5 bar

Media Temperature :- Up to 100°C

Seats, Core Tube, Springs :- Stainless Steel

Operating Voltage :- 12DC, 24DC, 230 AC

Application :- Water, Food, Gas, Medicine, Hospital & Health, Petro Chemistry

Coil Housing :- Epoxy Square Coil

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Other Specification Data :- Available on Request

Features:-

Solenoid valves are used with the filter.
 Bobbin up in a vertical position should be preferred.
 This product in the differential pressureis 0 bar.
 There are different models for different tube diameter and stiffness.
 Usage Areas : Dialysis Machines, Pharmaceutical Industry, Medical Laboratories, Food Industry, Bioreactors, Blood Transf Unit, Tissu Transplantation Units,
 Stiffness of Hose: Max. 55 Shore A
 The metal is used in particular to fluid communication undesirable.

Advantages :-

 Low Pressure Loss: Pinch valves at are very few pressure loss. This low pressure system reason it is preferred to perform the flow without causing further loss pressure.
 Use Amenities Containing Particulate in Fluids: Pinch valves use in streams containing small particles is an advantage. small parts such as sand can lead to clogging or orifice solenoid coil blubbering normal valves. The use of pinch valves is an advantage in such cases.
 Ease of change: In case of any malfunction in a very easy way pinch valves even the is possible to provide changes without the need stopping the flow.
 Being the Just Fow in Contact With Hosepipe: Is no material or seal outside Hose in pinch valves to be in contact with the fluid. This feature is of great importance for chemicals that are react with a hygienic risks flow
