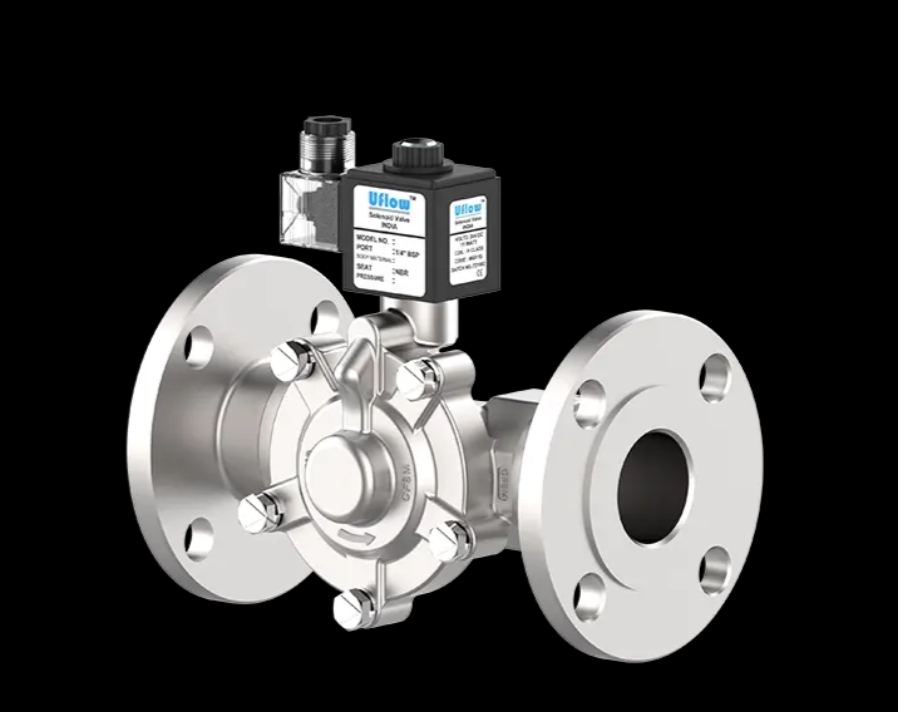

Pilot Operated Diaphragm Type Solenoid Valve (NC/NO) – PCN Series

Port :- 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″ & 4″(Available BSP / NPT)

End Connection :- Screwed / Flange

Body Material :- SS ASTM A351 Grade CF8 / CF8M

Diaphragm :- Nitrile (NBR) ((-30)°C to 90°C) & EPDM ((-10)°C to 140°C) & Viton (FKM) ((-10)°C to 180°C)

Circumstance Temp :- (-10)°C to 70°C

Media :- Air, Water, Chemical, Gas, Oil & LPG

Main Features :- Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.

Operating Voltage :- AC- 24V, 110V, 230V & DC- 12V, 24V

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing :- IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure.

Optional Feature :- 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.

Other Specification Data :- Available on Request. – High Pressure 20Kg Series. – Manual Override

NOTE :- Use of filter in the inlet port is recommended
