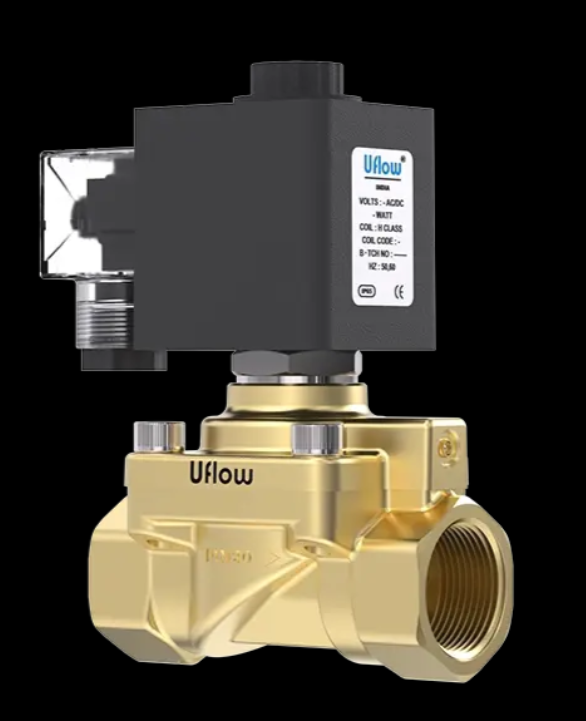

High Pressure Pilot Operated Diaphragm Type Solenoid Valve (NC) – PBU Series

Port :- 3/8″,  1/2″ (Available BSP / NPT)

End Connection :- Screwed

Body Material :- Forged Brass

Diaphragm :- PUR ((-10)°C to 50°C)

Circumstance Temp :- (-10)°C to 70°C

Media :- Air

Main Features :- Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.

Operating Voltage :- AC- 230V & DC- 12V, 24V

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing :- IP65 Epoxy square coil

Other Specification Data :- Available on Request.

NOTE :- Use of filter in the inlet port is recommended.
