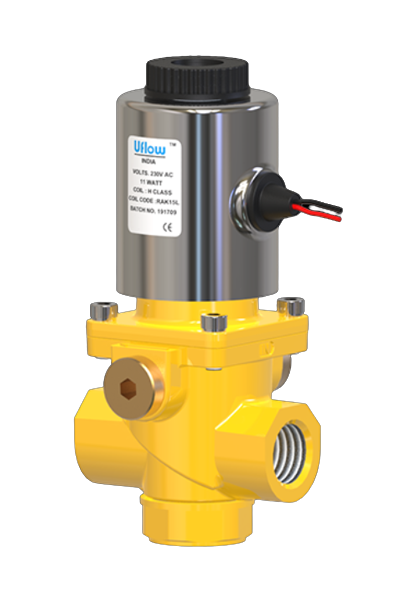

Gas Solenoid Valve

Specifications

Port : 1/2″ & 1″ (Available in BSP)
End Connection : Screwed
Body Material : Aluminum Pressure Die Cast

Diaphragm: NBR

Media Temp: -30 to 90 Deg C

Circumstance Temp : -10°C to 70°C
Media : Air, Natural Gas, Town Gas
Main Features : Flow adjustment, Opening time adjustment, Quick release initial flow adjustment

Operating Voltage: 110AC, 230AC

Power Consumption: 30W

Coil Features :High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Coil Housing : IP65 Epoxy square coil & Power Saver Coil

NOTE: Use of filter in the inlet port is recommended.
 Coils are conforming as per IEC-60335-1 with derivatives (LVD / EMC).
 Gas Solenoid Valve complies as per EN-161 requirement.
