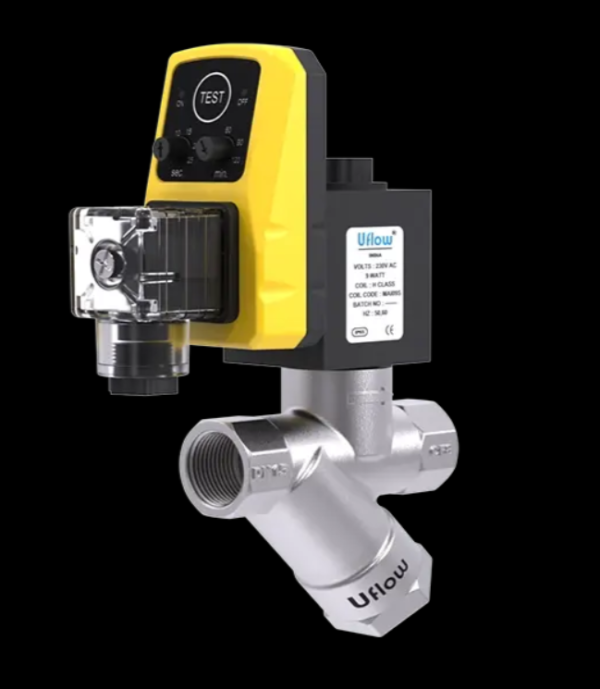

Auto Drain Valve

Port :- ½” – BSP Thread

End Connection :- Screwed

Body Material :- CF8 , Optional CF8M

Pressure Range :- 0 to 16 Bar

Diaphragm/Temperature :- Nitrile (NBR)/(-30) C to 90 C , EPDM/(-10) C to 140 C , Viton(FKM)/(-10) C to 180 C , SPL Viton/(-10) C to 180 C

Circumstance Temp :- (-10) C to 70 C

Media :- Air, Water, Chemical, Gas

Main Features :- Internal Parts are in superior corrosion resistance steel

Operating Voltage :- AC: 24V, 110V, 230V | DC: 12V, 24V

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing :- IP65 Epoxy square coil

Timing :- Cycle : 1 min to 120 min Adjustable
Drain : 1 sec to 25 sec Adjustable

Features :-  Designed specially to drain sludge and rust laden condensate
 ON and OFF timing adjustable  Reliable all digital electronic circuitry
