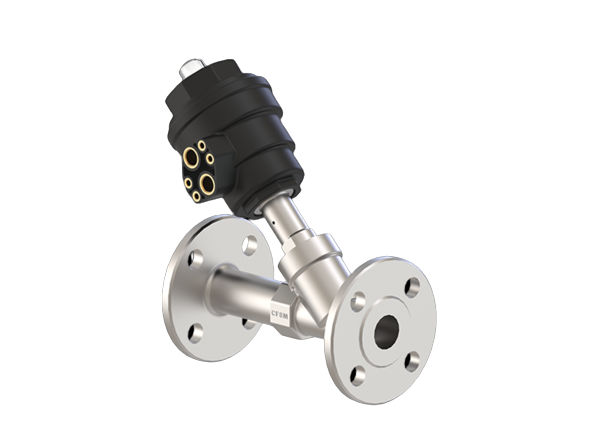

Angle Seat Valve

Specifications

Port : 1/2″, 3/4″, 1″, 1-1/4 “, 1-1/2 “, 2″ & 2-1/2 ” (Available in BSP / NPT)
End Connection : Screwed / Flange / Tri-Clamp / Socket Weld
Body & Sleeve Material : SS ASTM A351 Grade CF8 / CF8M / CF3M
Seal : PTFE / PEEK / VITON
Shaft : SS304 / SS316

Circumstance Temp : -10°C to 70°C
Media Temp : -10°C to 180°C
Other Specification Data: Available on request:- 1. Adjust Stroke Limiter & 2.Position Sensor



Actuator Type

Cover : Nylon Glass-Filled (Corrosion resistive) with SS Liner
Seal : NBR / VITON
Working Pressure : Refer Below Pressure Chart Table
Life : Three Million Cycle Tested
Other Technical Data : Available on Request



Features

 Convertible from single Acting to Double Acting.
 Multiple Function with the same operator – NC / NO / Bi-Directional.
 Rotatable Actuator- 360°.
 Transparent dome for visual confirmation of the valve’s position/state
 Lubricated air not essential.
 Flow direction below or above the seat.
 Media: Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water.
 Application: Steam, Autoclave and Sterilizer, Ink and Paint dispensing, Industrial compressor bottling and dispensing equipment, textile dying and drying and pharmaceutical.

Add to Quote
SKU: N/A Category:

Description

Additional information

Additional information

Angle Seat Valve

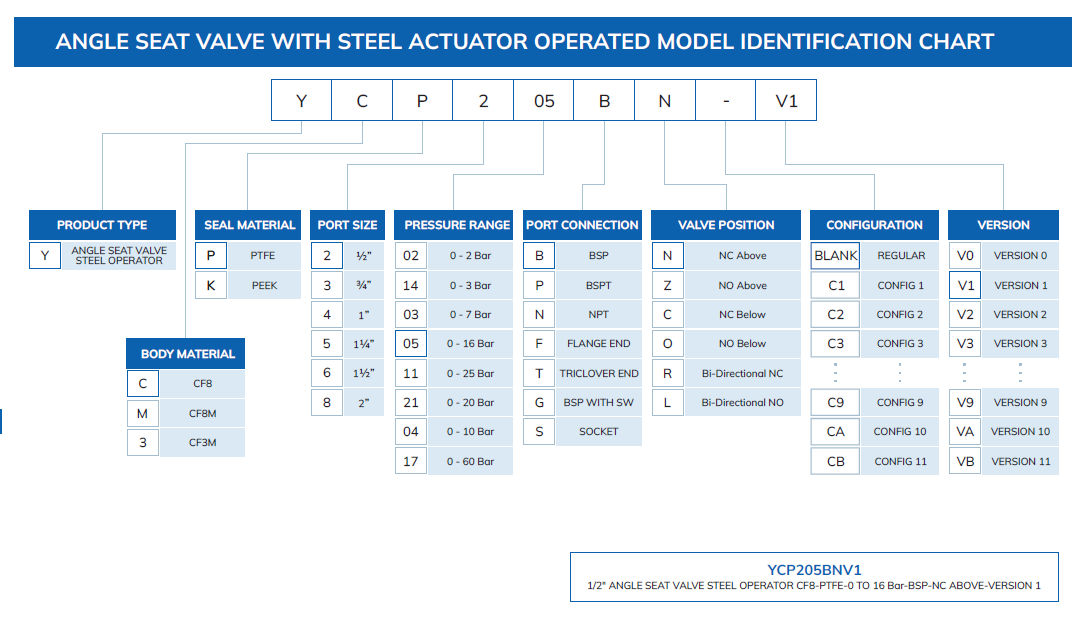

Plastic Actuator ACP2044BNV1, Plastic Actuator ACP2054BNV1, Plastic Actuator ACP3045BNV1, Plastic Actuator ACP3055BNV1, Plastic Actuator ACP4046BNV1, Plastic Actuator ACP4056BNV1, Plastic Actuator ACP5046BNV1, Plastic Actuator ACP5056BNV1, Plastic Actuator ACP6049BNV1, Plastic Actuator ACP6059BNV1, Plastic Actuator ACP8049BNV1, Plastic Actuator ACP8059BNV1, Plastic Actuator ACP9039BNV1, SS Actuator YCP205BNV0, SS Actuator YCP305BNV0, SS Actuator YCP405BNV0, SS Actuator YCP505BNV0, SS Actuator YCP605BNV0, SS Actuator YCP803BNV0
