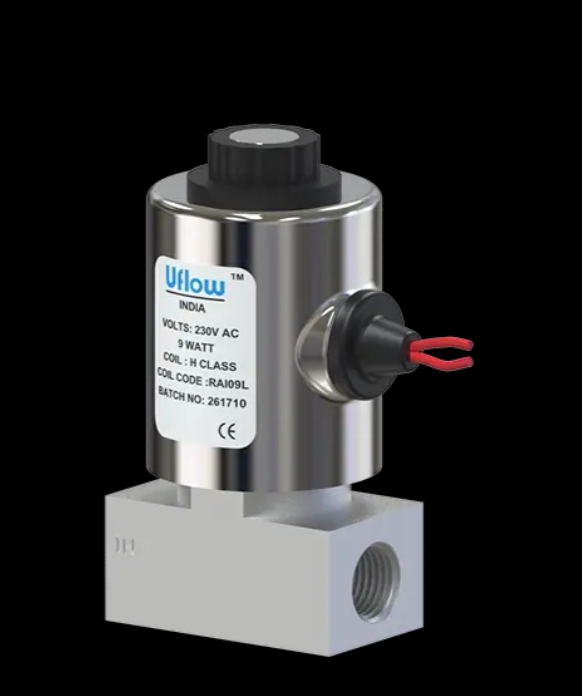

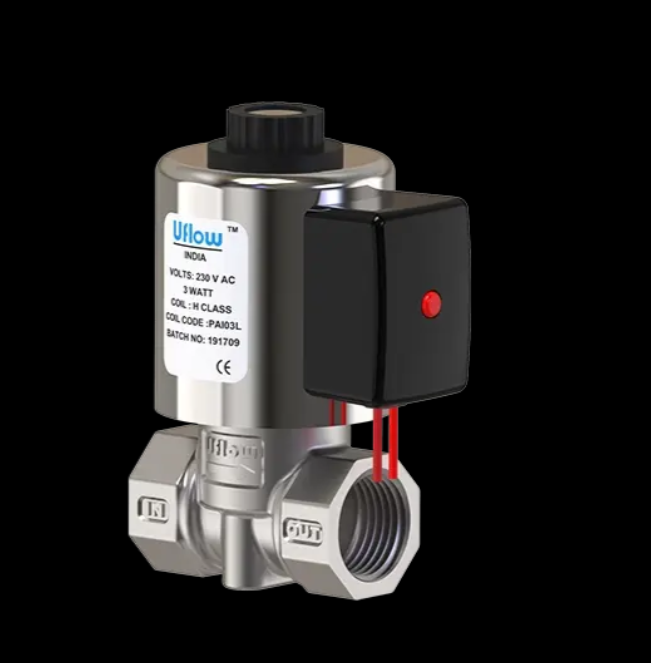

3/2 Way Direct Acting Solenoid Valve (NC / NO) – DAC & DAS Series

Port :- 1/8″ , 1/4″ , 3/8″ , 1/2″ (Available BSP/NPT)

End Connection :- Screwed

Body Material :- SS ASTM A351 Grade CF8 / CF8M, Forged Brass, Aluminium

Diaphragm :- Nitrile ((-30)C to 90 C), EPDM ((-10)C to 140 C), Viton(FKM) ((-10)C to 180 C, Silicone ((-10)C to 60 C)

Media :- Air, Chemical, Gas, Oil, Steam, Hot Water

Circumstance Temp :- (-10)C to 70 C

Main Features :- Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.

Operating Voltage :- AC- 24V, 110V, 230V & DC- 12V, 24V

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

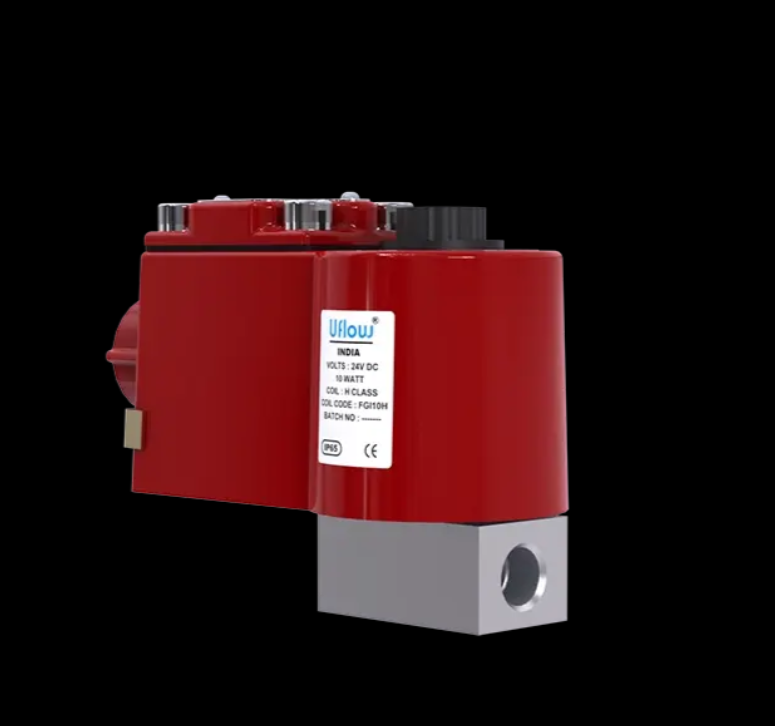

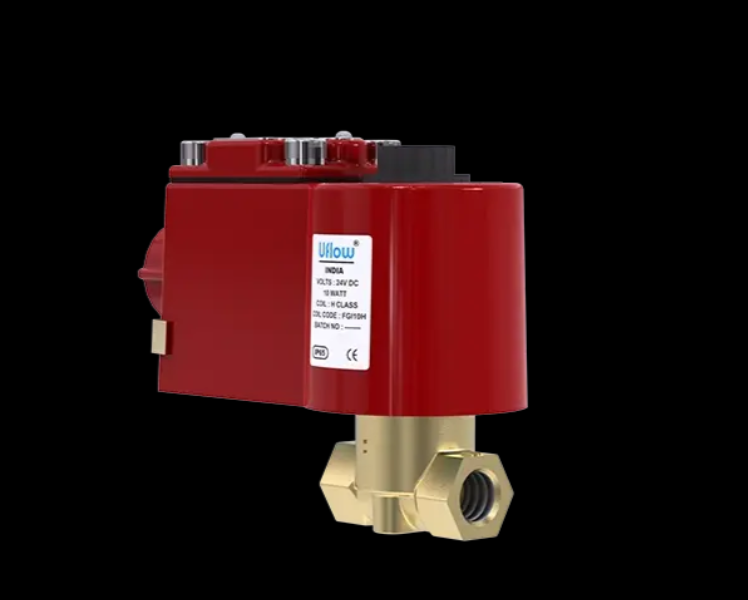

Coil Housing :- IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure.

Optional Feature :- 90% Power saver series also available & Latching as per Application.

Other Specification Data :- Available on Request.- Manual Override

NOTE:- Use of filter in the inlet port is recommended.

Add to Quote
SKU: N/A Category:

Description

Additional information

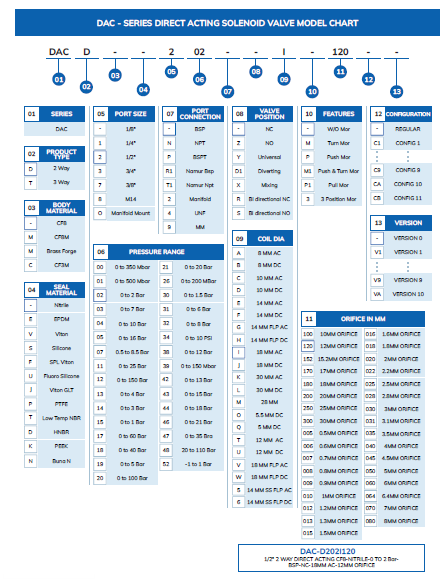

3/2 DAC Series

DAC-T103C016, DAC-T104E015, DAC-T105E009, DAC-T111E009, DAC-T118E009, DAC-T119E025, DAC-T204E015, DAC-T205E009, DAC-T211E009, DAC-T219E025, DAC-T704E015, DAC-T705E009, DAC-T711E009, DAC-T718E009, DAC-T719E025, DAC-TB004C012, DAC-TB004E015, DAC-TB014C025, DAC-TB103C012, DAC-TB104C012, DAC-TB104E020, DAC-TB105E009, DAC-TB111E009, DAC-TB114C025, DAC-TB118E009, DAC-TB119E025, DAC-TB204E015, DAC-TB205E009, DAC-TB211E009, DAC-TB218E009, DAC-TB219E025, DAC-TB704E015, DAC-TB705E009, DAC-TB711E009, DAC-TB719E025, DAS-TA104C012, DAS-TA104E015, DAS-TA104R1E015, DAS-TA105E009, DAS-TA111E009, DAS-TA118E009, DAS-TA119E025, DAS-TA204E015, DAS-TA205E009, DAS-TA704E015, DCP-T1RBT050, DCP-T1UT050
