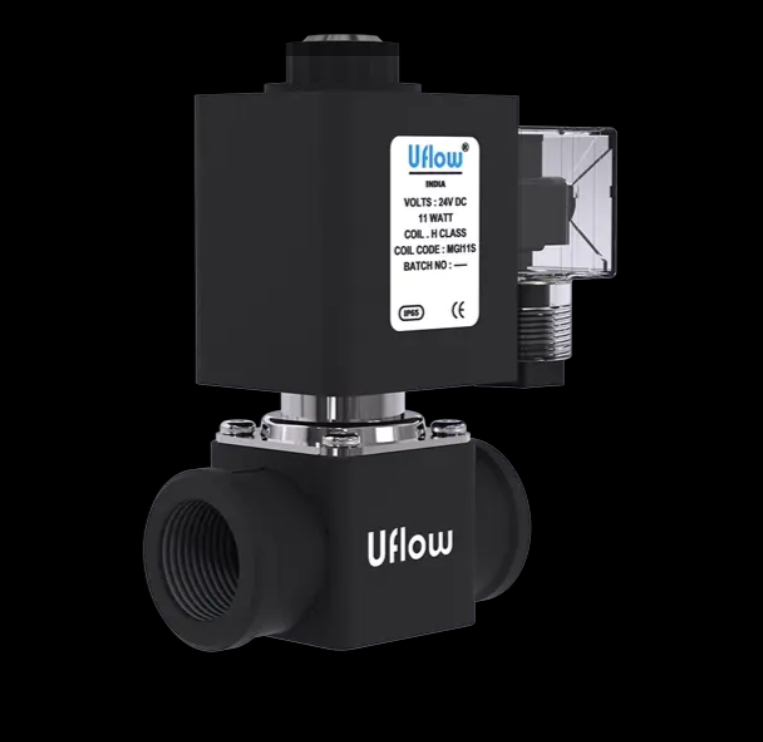

2 Way Direct Acting Media Separated Solenoid Valve

Port :- ½” – BSP Thread

End Connection :- Screwed

Body Material :- Nylon GF

Pressure Range :- 0 to 20 PSI (0 to 1.3 Bar)

Diaphragm & Seal :- FPM

Media Temp :- 5°C to 50°C

Circumstance Temp :- (-10)°C to 70°C

Media :- Water, Liquid Media, Gaseous Media

Main Features :- Internal Parts are in superior corrosion resistance steel. and Without Mor

Operating Voltage :- AC: 24, 110, 230 & DC: 12, 24

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing :- IP65 Epoxy square coil, IP65 Metallic round enclosure.

Other Specification Data :- Available on Request
1. Available for vacuum application upto 450mm Hg

Note :- Use of filter in the inlet port is recommended. Specification may change without prior notice.
