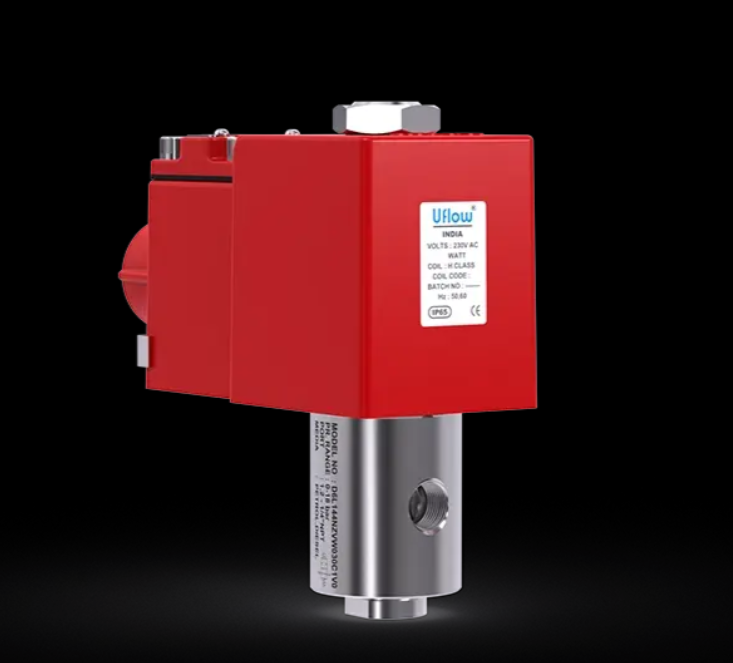

2/2 Solenoid Valve For Terminal / Gantry Automation (NC / NO) – DAR Series

Type :- 2/2 Direct Acting

Body Material :- SS 316

Port Connection :- 1/4” NPT(F)

Media :- Petrol/ Diesel/ SKO/ HSD

Ambient Temperature :- (-20)°C to 70°C

Seal Material :- Viton GLT

Media Temp: :- (-30)°C to 230°C

Operating Voltage :- 230V AC

Coil Features :- High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing :- IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure.

Features :-

• Mounts in any position
• Vibration resistance up to 9g
• Suitable for high speed cycling
• Speed up to 600 cycles/ min
• Life >10 million cycles
